Robustel R5020e eSIM 5G Router
Robustel R5020e eSIM 5G Router is backordered and will ship as soon as it is back in stock.
Robustel Cloud Manager Service — zero-touch provisioning, fleet monitoring, over-the-air updates and secure remote access, at no cost for the first 12 months. Note that RCMS can increase data usage, which is worth checking against your plan on metered SIMs. What RCMS does →
Tick this and we’ll contact you after you order to recommend a data plan and SIM for your site. No obligation, and it doesn’t change your order.
Australian compliance
Australian compliance
Certifications are listed only where the manufacturer states them against this order code. RCM is never assumed. If an approval matters for your project, ask us and we will confirm it in writing with the factory before you specify it.
Ordering and freight
Ordering and freight
Prices are ex-GST. GST and freight are calculated at checkout. If your organisation raises purchase orders, add the PO number to the cart note and it will come through with the order.
Robustel R5020e eSIM 5G Router
Robustel R5020e eSIM 5G Router is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.
The R5020e is the eSIM variant of the R5020 platform, pairing one removable Mini SIM with a soldered MFF2 eUICC that is GSMA SGP.22 compliant and holds up to eight operator profiles, allowing carrier changes to be made remotely. It provides 5G NR NSA/SA with 4G LTE and 3G fallback, four gigabit Ethernet ports with 1 kV isolation, Wi-Fi 5, RS-232/RS-485 serial and opto-isolated digital I/O.
Key features
- Hybrid SIM: 1 x Mini SIM (2FF) + 1 x MFF2 eSIM/eUICC, GSMA SGP.22, up to 8 profiles
- 5G NR NSA/SA with 4G LTE FDD/TDD and 3G fallback
- 4 x 10/100/1000 Mbps Ethernet with 1 kV isolation, 4 LAN or 1 WAN + 3 LAN
- Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO; optional GNSS
- RS-232 and RS-485 plus 1 x DI + 1 x DO, 3.75 kV opto-isolated
- 802.3at PoE-PD on ETH0; RobustOS with RCMS, VPN, firewall and Smart Roaming V3
-
Part number
-
Ingress protection
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Power input
-
Radio bands and standards5G NR n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79, LTE FDD, LTE TDD, 3G, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
-
Connectivity5G NR, 4G/LTE, 3G, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)
-

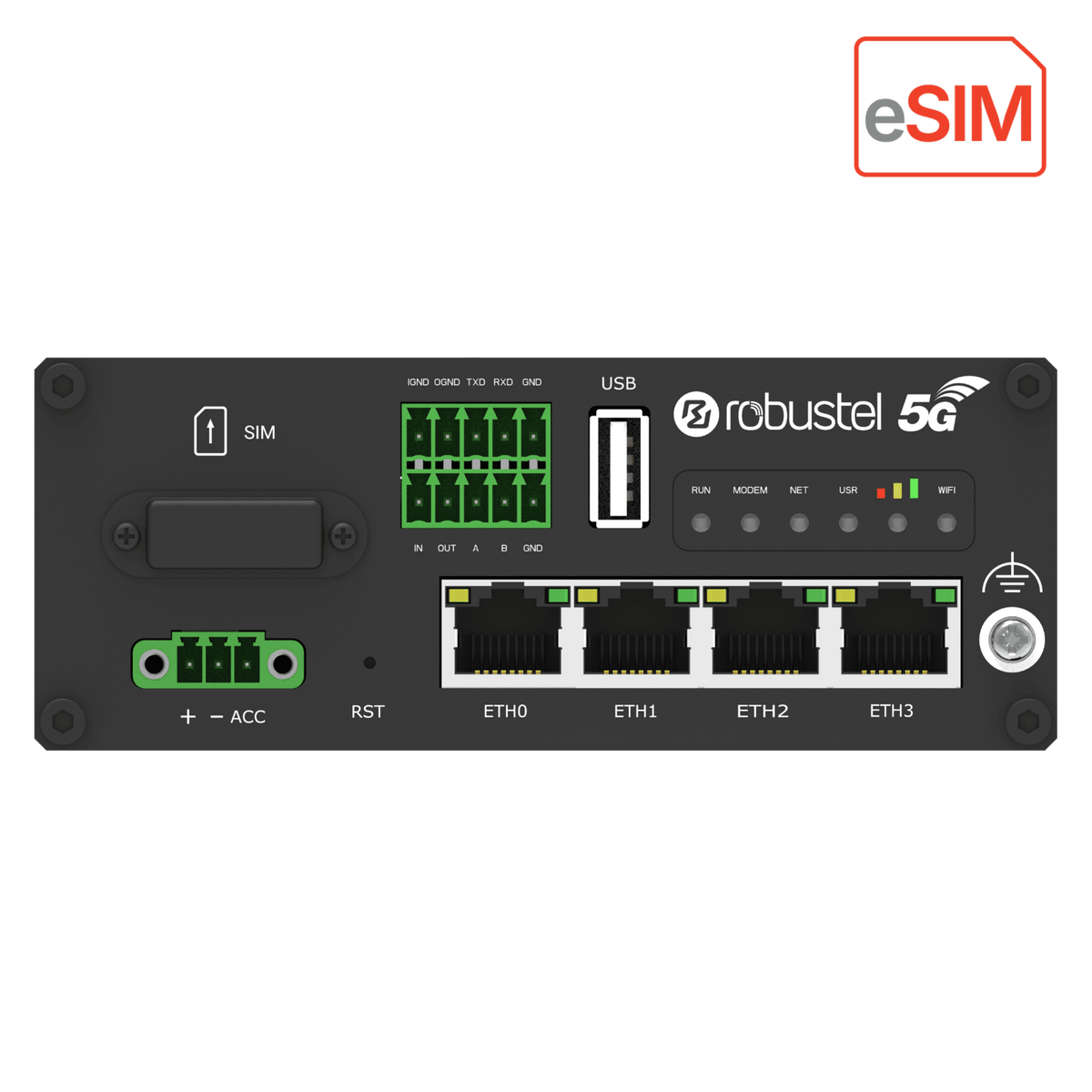

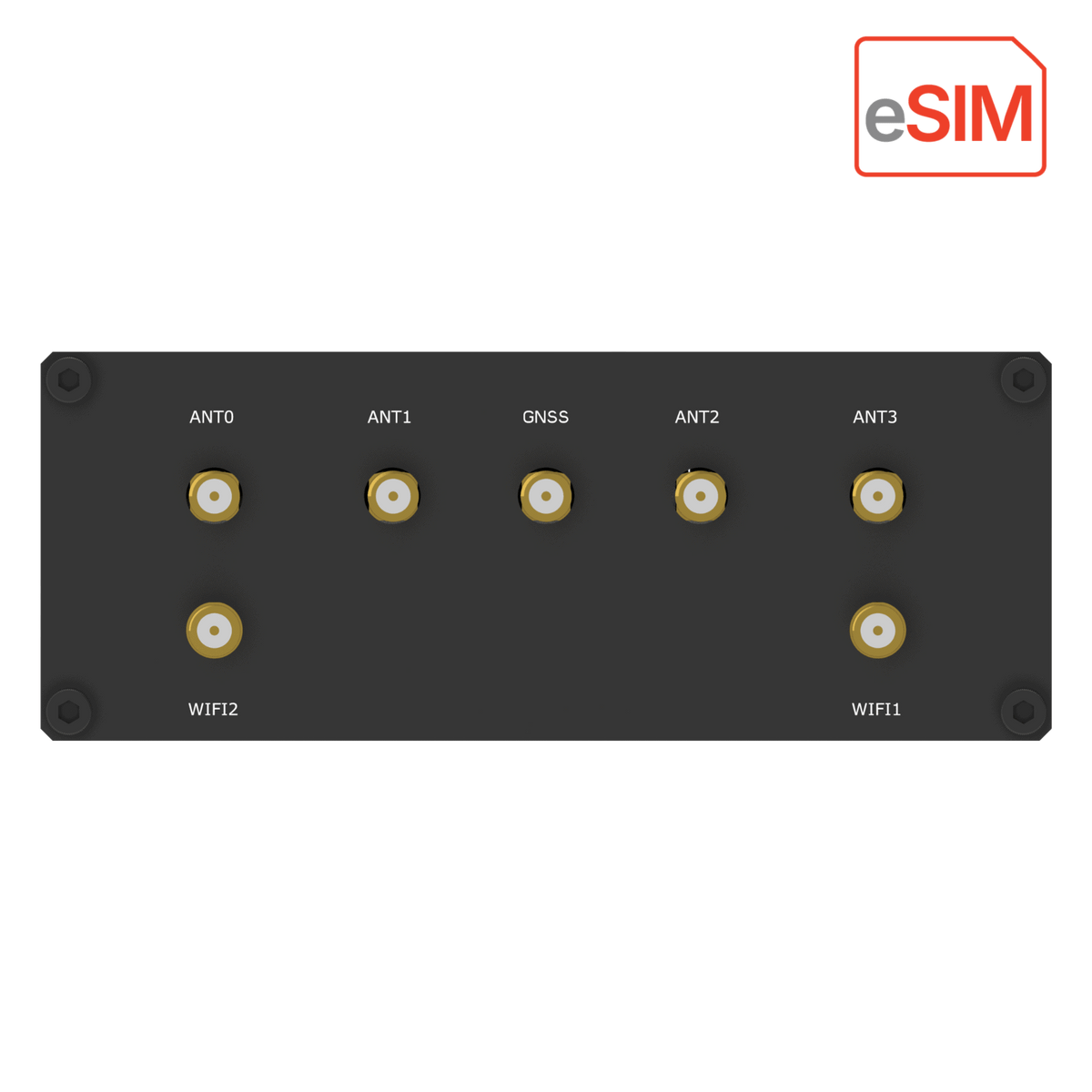

Network and serial interfaces4 x 10/100/1000 Ethernet (1 kV isolated), RS-232, RS-485, 1 x DI, 1 x DO (3.75 kV opto-isolated), 1 x USB 2.0 host, 1 x Mini SIM slot + MFF2 eSIM, 4 x cellular antenna SMA-K, 802.3at PoE-PD on ETH0
-
Ports and connectorsGigabit Ethernet, RS-232, RS-485, Digital I/O, USB, eSIM, SMA, PoE powered (PD)
-

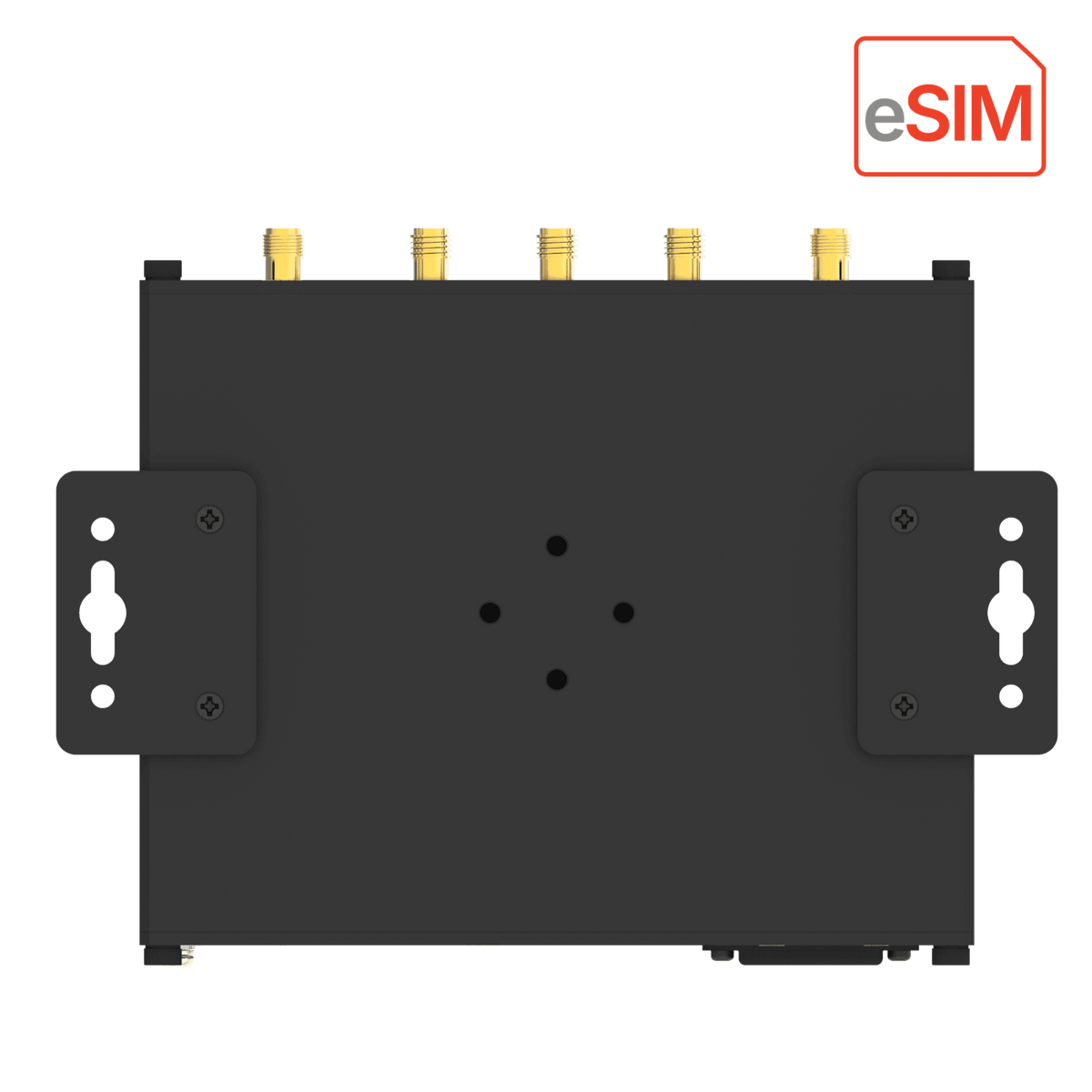

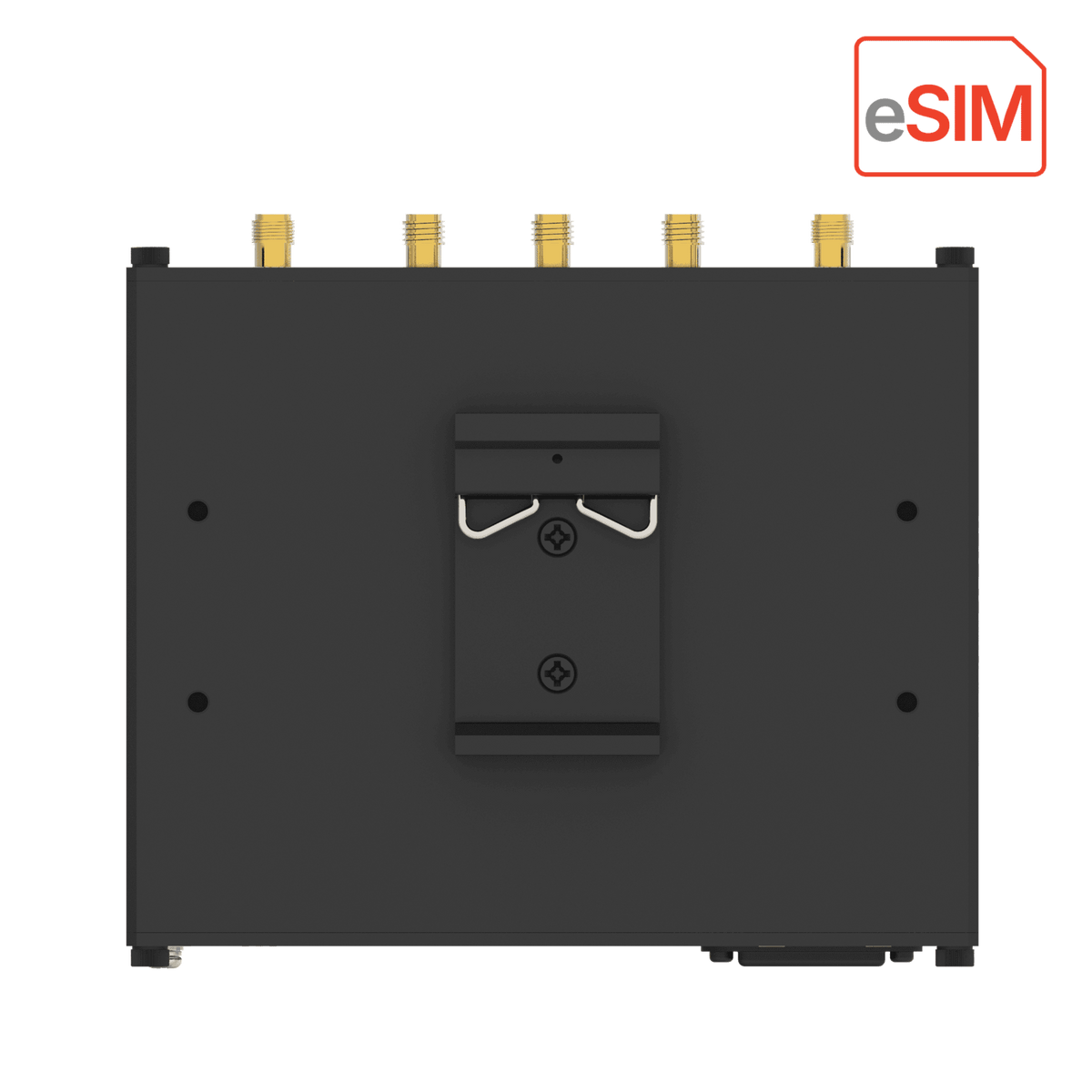

MountingDIN rail, Wall
-
Dimensions (mm)
-
Weight (g)
-
CertificationsRCM
-
Datasheet
-
Firmware portal
Prices are ex-GST. GST and freight are calculated at checkout.
Blank fields are deliberate. We publish the manufacturer's own figures and leave the rest out. If you need a value that isn't here, ask and we will get it from the factory rather than guess it.
Some lines are enquiry-only. Where an order code or an approval needs confirming before we sell it into Australia, the page carries a request-a-quote path instead of an add-to-cart button.
Purchase orders are welcome. Add your PO number to the cart note and it travels with the order.
