Robustel R5020 High Speed Smart 5G Router
Robustel R5020 High Speed Smart 5G Router is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.
The R5020 is an industrial dual-SIM 5G NR router with four gigabit Ethernet ports, Wi-Fi 5, serial and digital I/O. It supports 5G NR in both non-standalone and standalone modes with fallback to 4G LTE and 3G, and offers optional GNSS, ignition detection and 802.3at PoE-PD on ETH0. E-Mark certification is available on applicable variants for in-vehicle use.
Key features
- 5G NR NSA/SA with 4G LTE and 3G fallback, dual Mini SIM automatic failover
- 4 x 10/100/1000 Mbps Ethernet, configurable 1 WAN + 3 LAN or 4 LAN
- Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz), AP and Client modes, WPA3
- Optional GNSS (GPS L1/L5, Galileo, GLONASS, BDS, QZSS) and ignition detection
- Optional 802.3at PoE-PD on ETH0
- RS-232 + RS-485, 1 x DI + 1 x DO, USB 2.0 host; RobustOS with SDK and RCMS
-
Part number
-
Ingress protection
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Power input
-
Radio bands and standards5G NR NSA/SA n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79, LTE FDD, LTE TDD, 3G, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
-
Connectivity5G NR, 4G/LTE, 3G, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz), GNSS/GPS
-

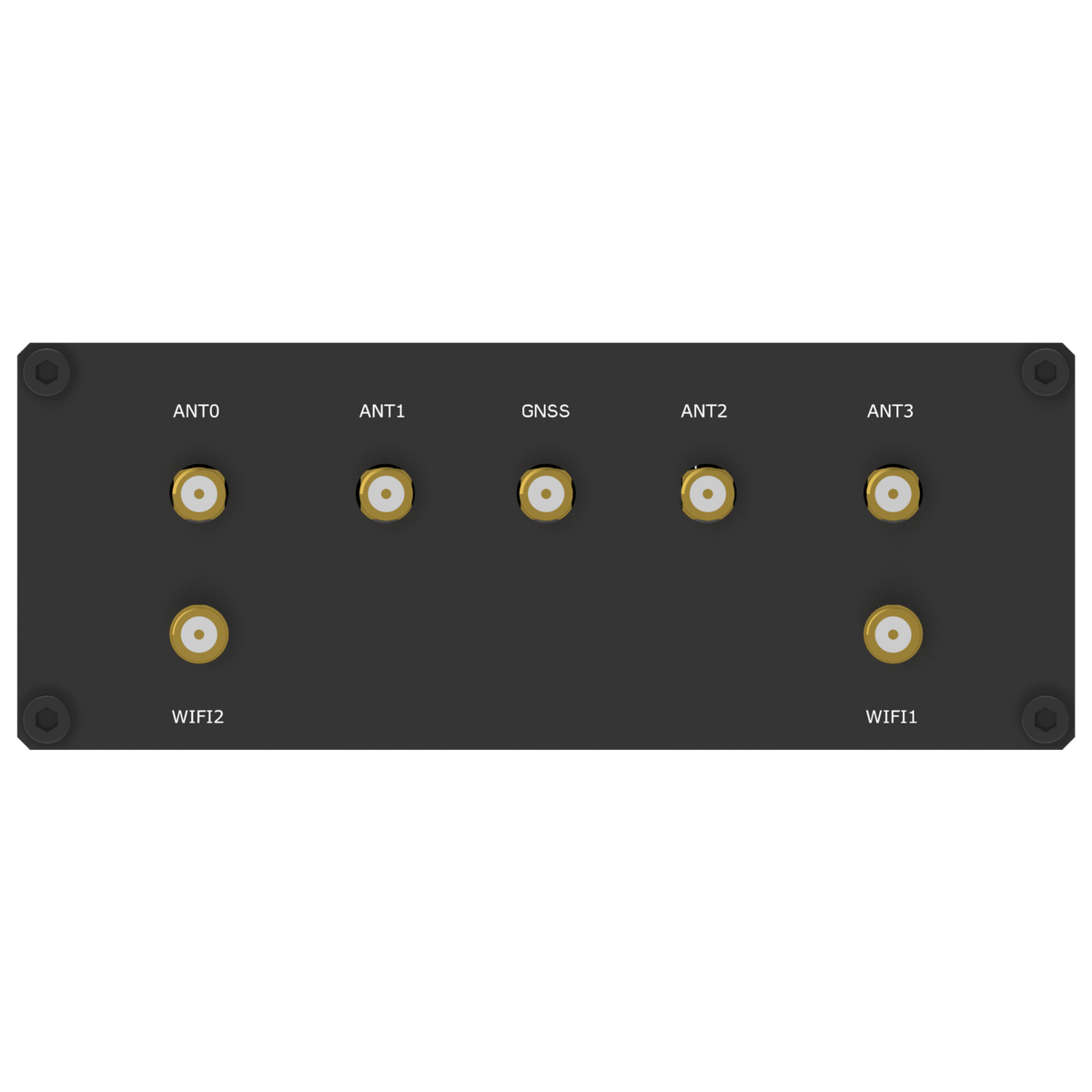

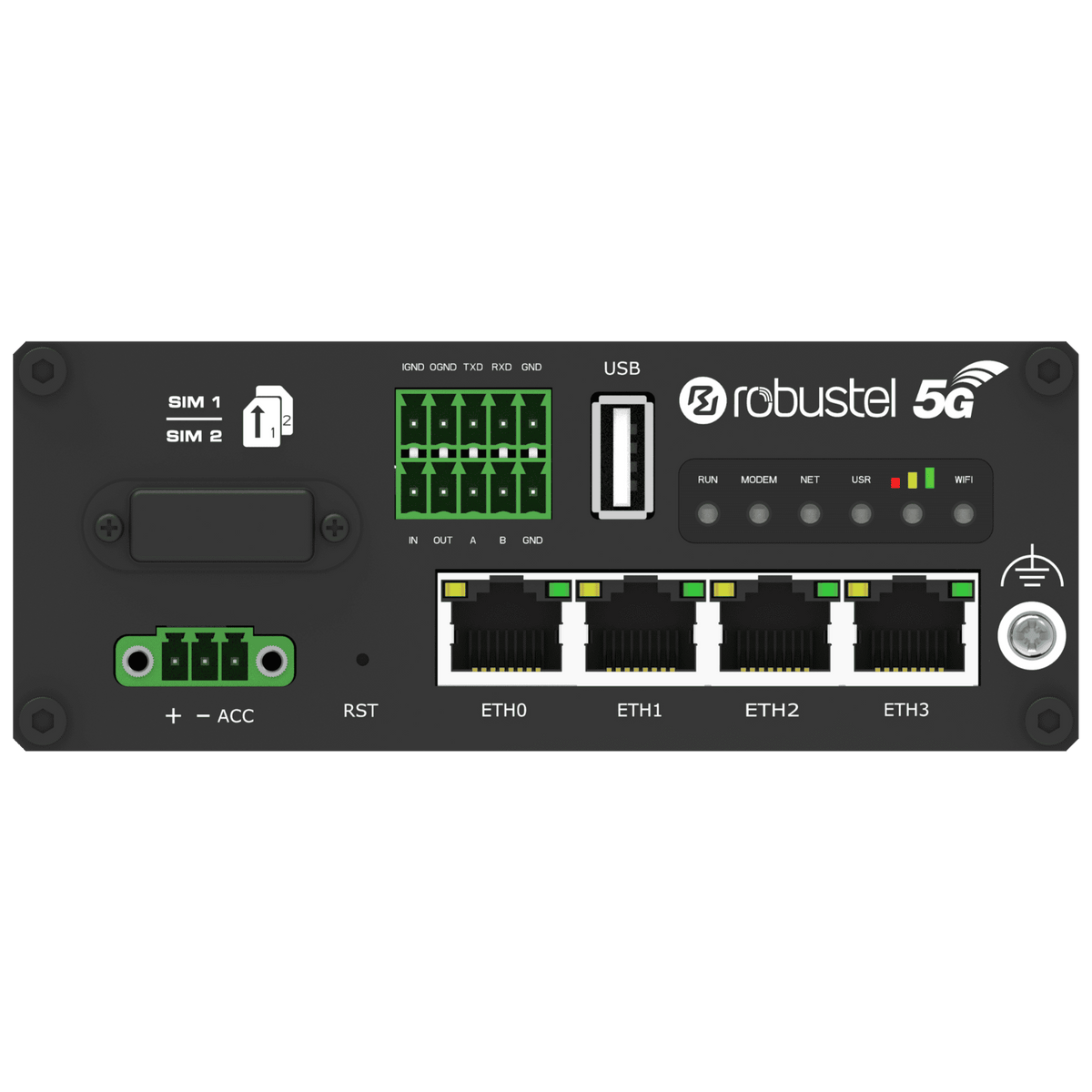

Network and serial interfaces4 x 10/100/1000 Ethernet, RS-232, RS-485, 1 x DI, 1 x DO, 1 x USB 2.0 host, SIM slot x2, 4 x cellular antenna SMA-K, optional GNSS, optional 802.3at PoE-PD on ETH0
-
Ports and connectorsGigabit Ethernet, RS-232, RS-485, Digital I/O, USB, Dual SIM, SMA, PoE powered (PD)
-

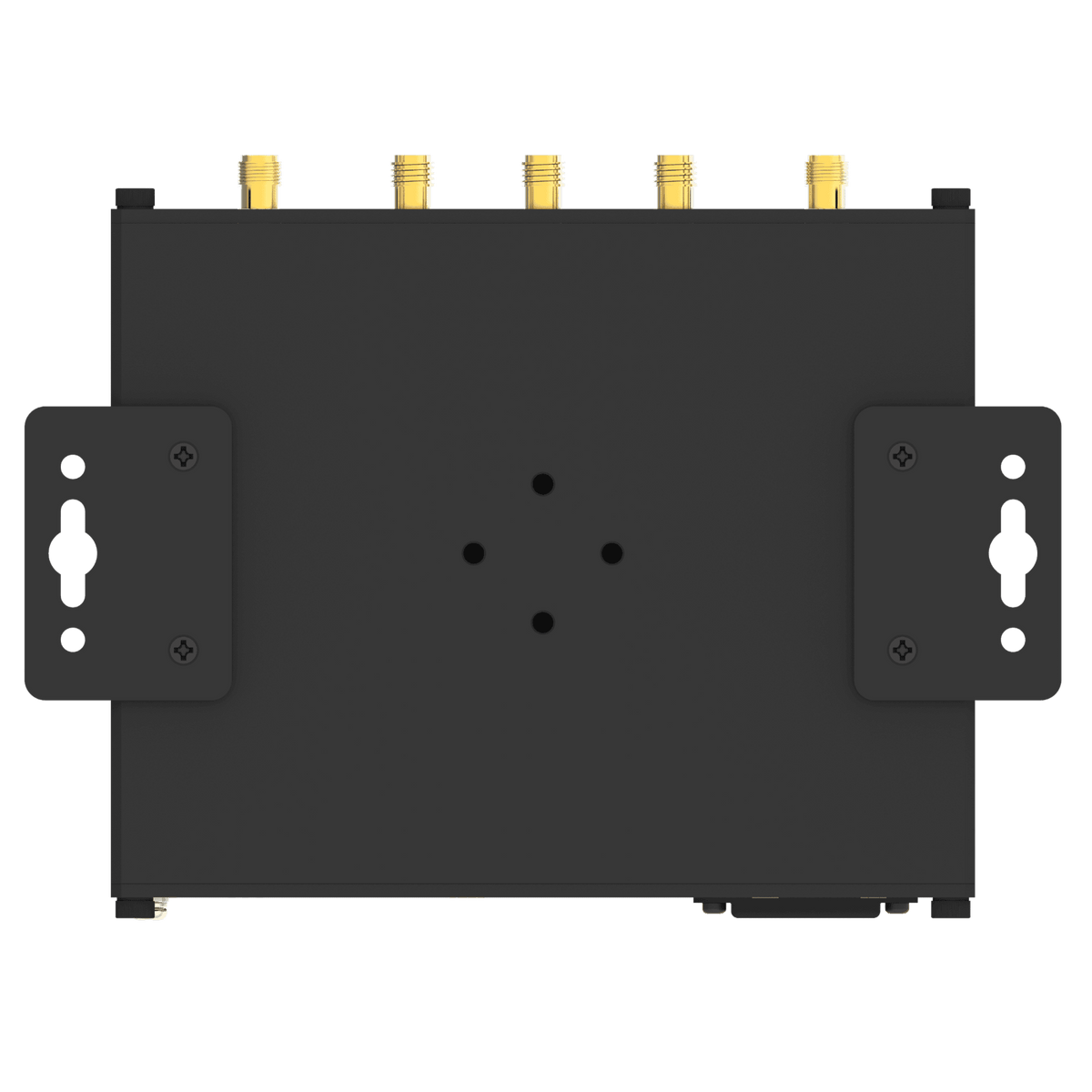

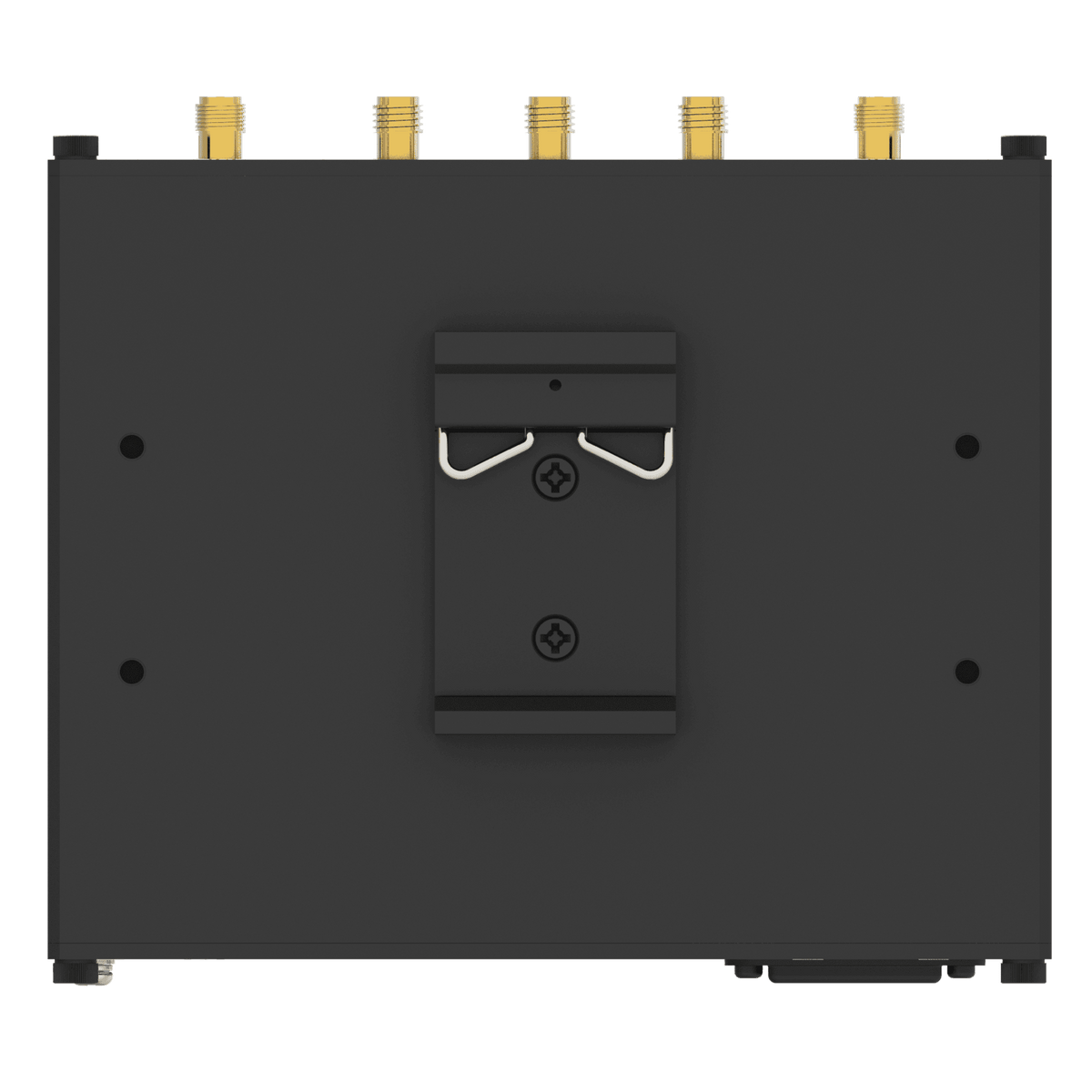

MountingDIN rail, Wall
-
Dimensions (mm)
-
Weight (g)
-
CertificationsCE, UKCA, RCM, FCC, IC, CB, E-Mark
-
Datasheet
-
Firmware portal
Prices are ex-GST. GST and freight are calculated at checkout.
Blank fields are deliberate. We publish the manufacturer's own figures and leave the rest out. If you need a value that isn't here, ask and we will get it from the factory rather than guess it.
Some lines are enquiry-only. Where an order code or an approval needs confirming before we sell it into Australia, the page carries a request-a-quote path instead of an add-to-cart button.
Purchase orders are welcome. Add your PO number to the cart note and it travels with the order.
