Robustel EG5120 Industrial Edge Computing Gateway
Robustel EG5120 Industrial Edge Computing Gateway is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.
The EG5120 provides cellular backhaul together with on-device compute for containerised applications at the edge. It uses a quad-core 1.6 GHz Cortex-A53 platform with LPDDR4 memory and 64 GB eMMC, running RobustOS Pro (Debian-based) with Docker support. Field connectivity is via gigabit Ethernet, two software-configurable RS-232/RS-485 serial ports, four channels of digital I/O, USB 3.0 and MicroSD.
Key features
- Quad-core Cortex-A53 1.6 GHz; 2 GB or 4 GB LPDDR4 and 64 GB eMMC, depending on variant
- RobustOS Pro with Docker container support
- 2 x RJ45 10/100/1000 Mbps Ethernet (1000BASE-T), configurable as LAN or WAN
- 2 x RS-232/RS-485 software-configurable serial, 300–115200 bps
- 2 x DI + 2 x DO (wet contact), USB 3.0 host and MicroSD slot
- Dual Mini SIM (2FF); 5G and 4G-only variants available
- Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO on selected variants
The EG5120 is a family rather than a single SKU — cellular generation, memory and fitted options vary by order code. Contact us to confirm the right variant before ordering.
-
Part number
-
Ingress protection
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Power input
-
Radio bands and standards5G NR n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79, LTE FDD, LTE TDD, 3G, 2G
-
Connectivity5G NR, 4G/LTE, 3G, 2G
-
Network and serial interfaces2 x RJ45 10/100/1000 Ethernet (1.5 kV isolated), 2 x RS-232/RS-485, 2 x DI, 2 x DO, 1 x USB 3.0 host, 1 x MicroSD slot, SIM slot x2 (Mini SIM 2FF)
-
Ports and connectorsGigabit Ethernet, RS-232, RS-485, Digital I/O, USB, Dual SIM
-

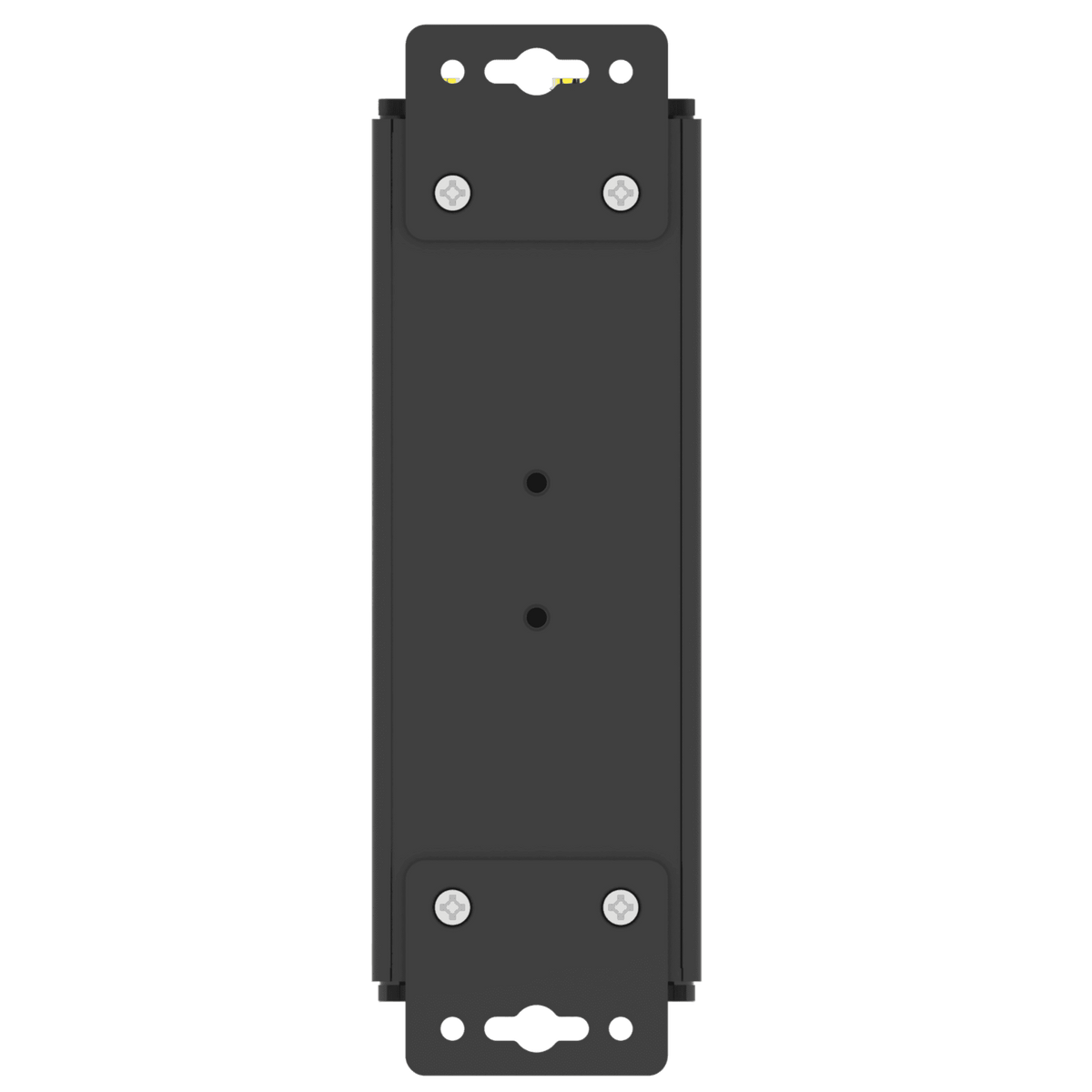

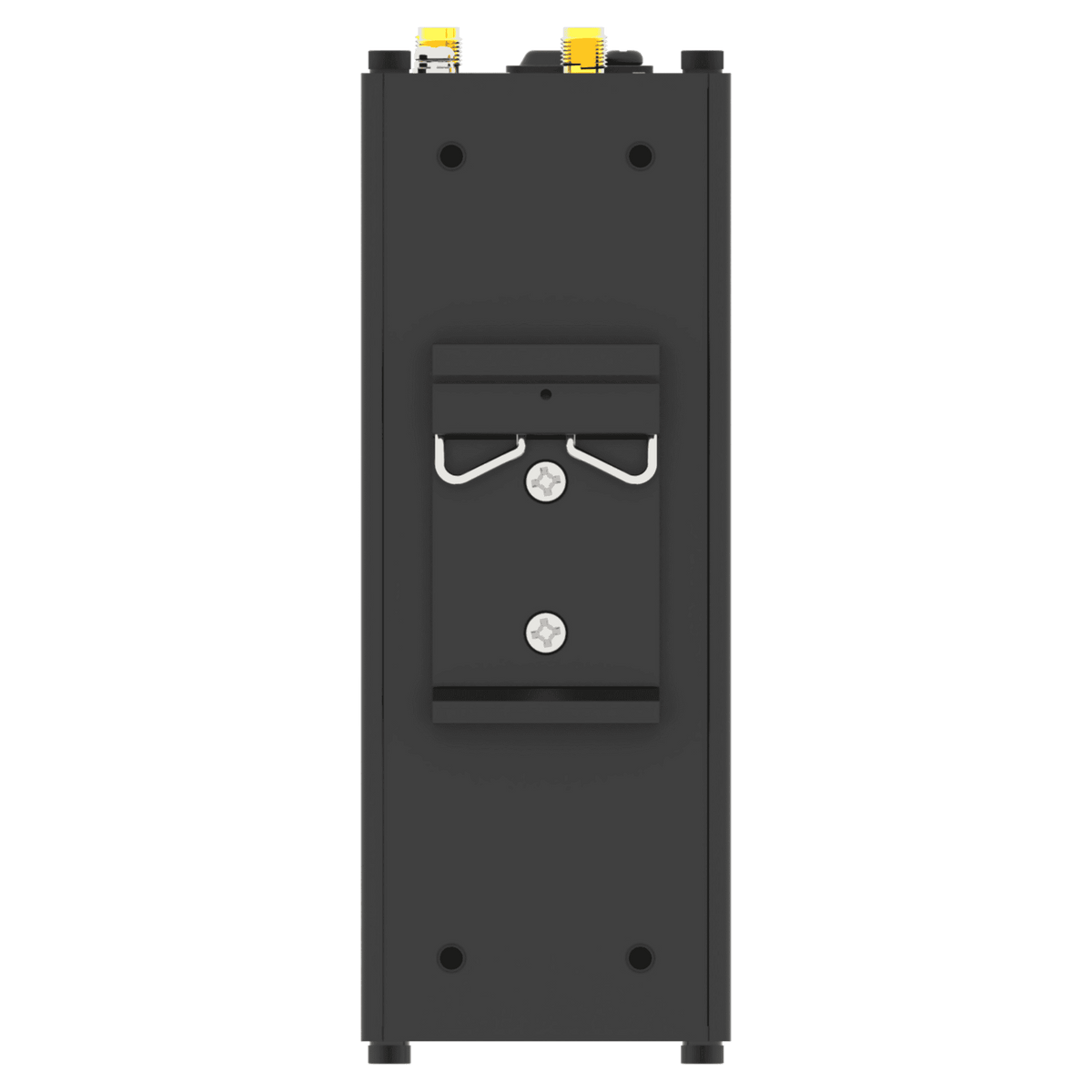

MountingDIN rail, Wall
-
Dimensions (mm)
-
Weight (g)
-
CertificationsCE, UKCA, CB, RCM, FCC, IC
-
Datasheet
-
Firmware portal
Prices are ex-GST. GST and freight are calculated at checkout.
Blank fields are deliberate. We publish the manufacturer's own figures and leave the rest out. If you need a value that isn't here, ask and we will get it from the factory rather than guess it.
Some lines are enquiry-only. Where an order code or an approval needs confirming before we sell it into Australia, the page carries a request-a-quote path instead of an add-to-cart button.
Purchase orders are welcome. Add your PO number to the cart note and it travels with the order.
