Panorama LPW-BC3G-26 Low Profile Wall Mount 2G/3G/4G LTE Antenna
Panorama LPW-BC3G-26 Low Profile Wall Mount 2G/3G/4G LTE Antenna is backordered and will ship as soon as it is back in stock.
Australian compliance
Australian compliance
Certifications are listed only where the manufacturer states them against this order code. RCM is never assumed. If an approval matters for your project, ask us and we will confirm it in writing with the factory before you specify it.
Ordering and freight
Ordering and freight
Prices are ex-GST. GST and freight are calculated at checkout. If your organisation raises purchase orders, add the PO number to the cart note and it will come through with the order.
Panorama LPW-BC3G-26 Low Profile Wall Mount 2G/3G/4G LTE Antenna
Panorama LPW-BC3G-26 Low Profile Wall Mount 2G/3G/4G LTE Antenna is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.

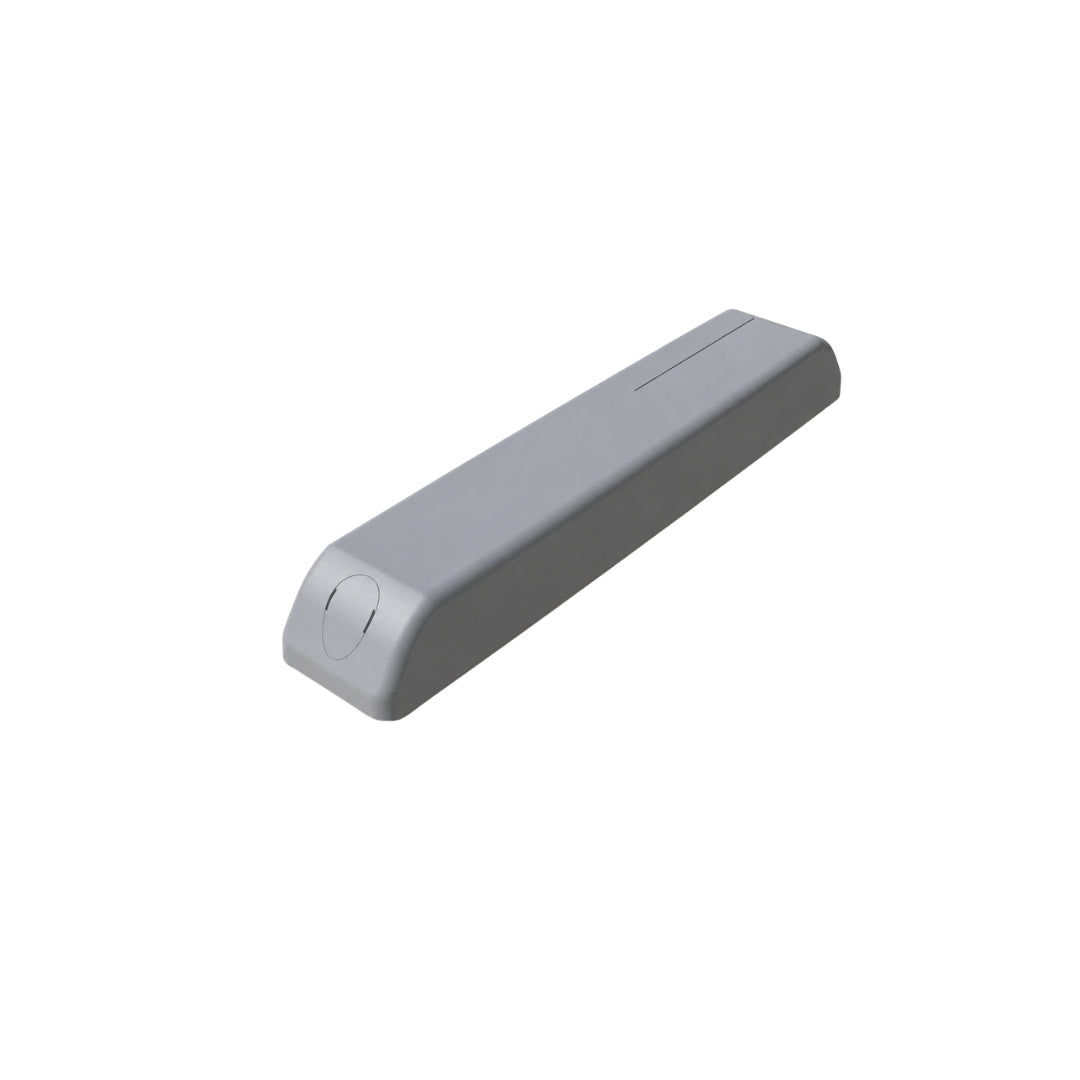

A slim wall-mount omnidirectional antenna for IoT and smart-metering installs, ground-plane independent so it works mounted flat against a wall or enclosure. Adhesive pad plus two screw fixings, 2 m of RG174 to an SMA plug.
On the ingress rating: Panorama describes this antenna as "equivalent to IP66 when properly installed" rather than assigning it a plain IP66 rating, so we have left the ingress field blank rather than publish an unqualified claim.
-
Part number
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Radio bands and standards698-960 MHz, 1710-2700 MHz
-
Connectivity4G/LTE, 3G, 2G
-
Antenna gain
-
RF performanceVSWR typ. <2:1, Ground-plane independent
-
Network and serial interfacesSMA plug (-2SP variant), RG174 cable, 2.8 mm, 2 m
-
Ports and connectorsSMA
-
MountingIndustrial acrylic adhesive pad, 2 x 4.8 mm screws
-
Dimensions (mm)
Prices are ex-GST. GST and freight are calculated at checkout.
Blank fields are deliberate. We publish the manufacturer's own figures and leave the rest out. If you need a value that isn't here, ask and we will get it from the factory rather than guess it.
Some lines are enquiry-only. Where an order code or an approval needs confirming before we sell it into Australia, the page carries a request-a-quote path instead of an add-to-cart button.
Purchase orders are welcome. Add your PO number to the cart note and it travels with the order.
