Panorama EFBC3G26SC-2SPIP Stargazer Rugged 4G/LTE Easyfit Antenna
Panorama EFBC3G26SC-2SPIP Stargazer Rugged 4G/LTE Easyfit Antenna is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.

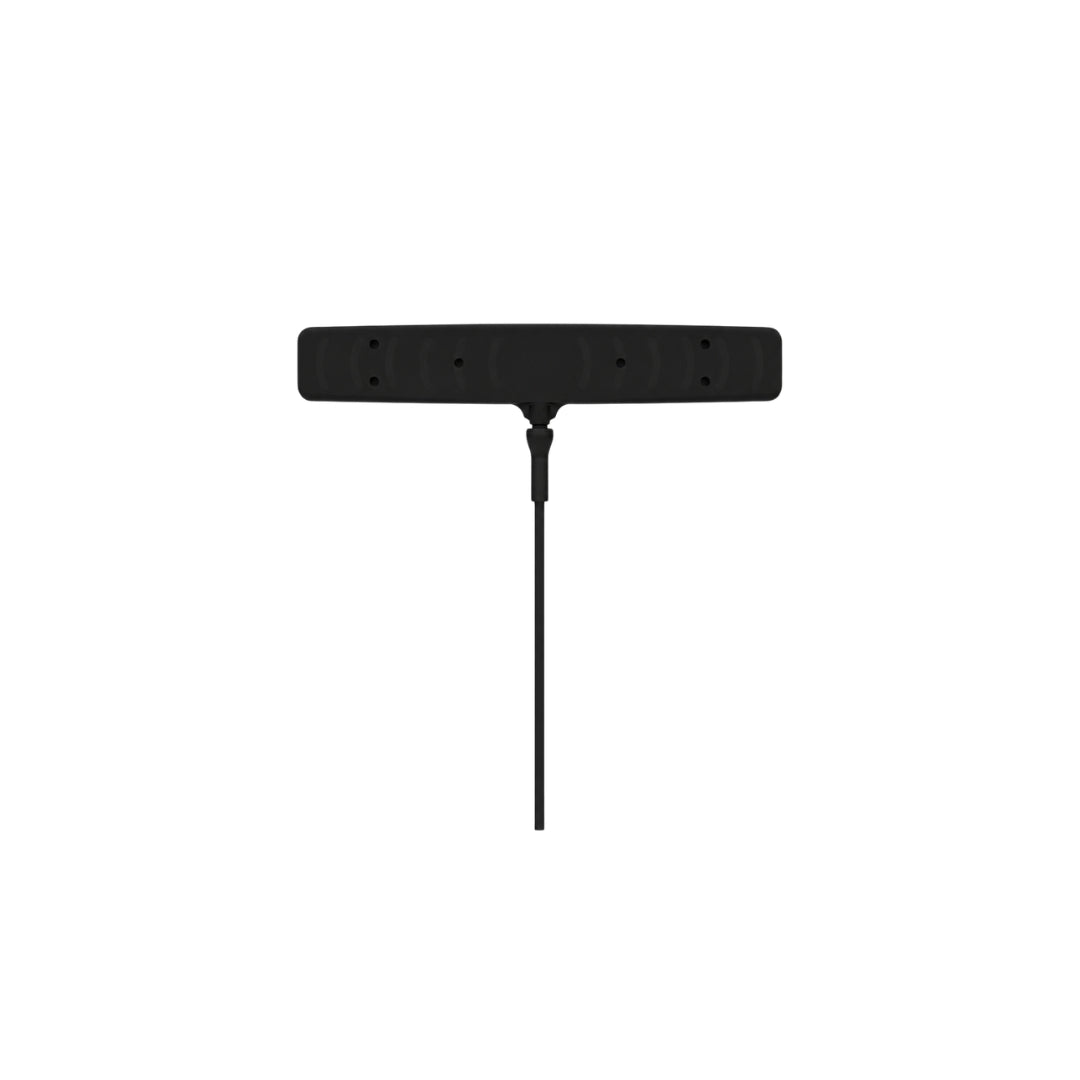

A rugged, fully submersible adhesive-mount 4G/LTE antenna from Panorama's Stargazer range, built for buried, pit, manhole and wet-environment installs where a standard antenna would fail. IP68 rated with an IP68-sealed SMA plug on 2 m of RG174.
Typical use is cellular metering and remote monitoring under a lid — the priority is survival and a sealed connection, not raw gain.
-
Part number
-
Ingress protection
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Radio bands and standards698-960 MHz, 1710-2700 MHz
-
Connectivity4G/LTE, 3G, 2G
-
Antenna gain
-
RF performanceVSWR typ. <2:1, Vertical polarisation
-
Network and serial interfacesIP68 SMA plug, RG174 cable, 2 m
-
Ports and connectorsSMA
-
MountingAdhesive pad
-
Dimensions (mm)
