Robustel R2120 Industrial Cellular PoE Router
Robustel R2120 Industrial Cellular PoE Router is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.

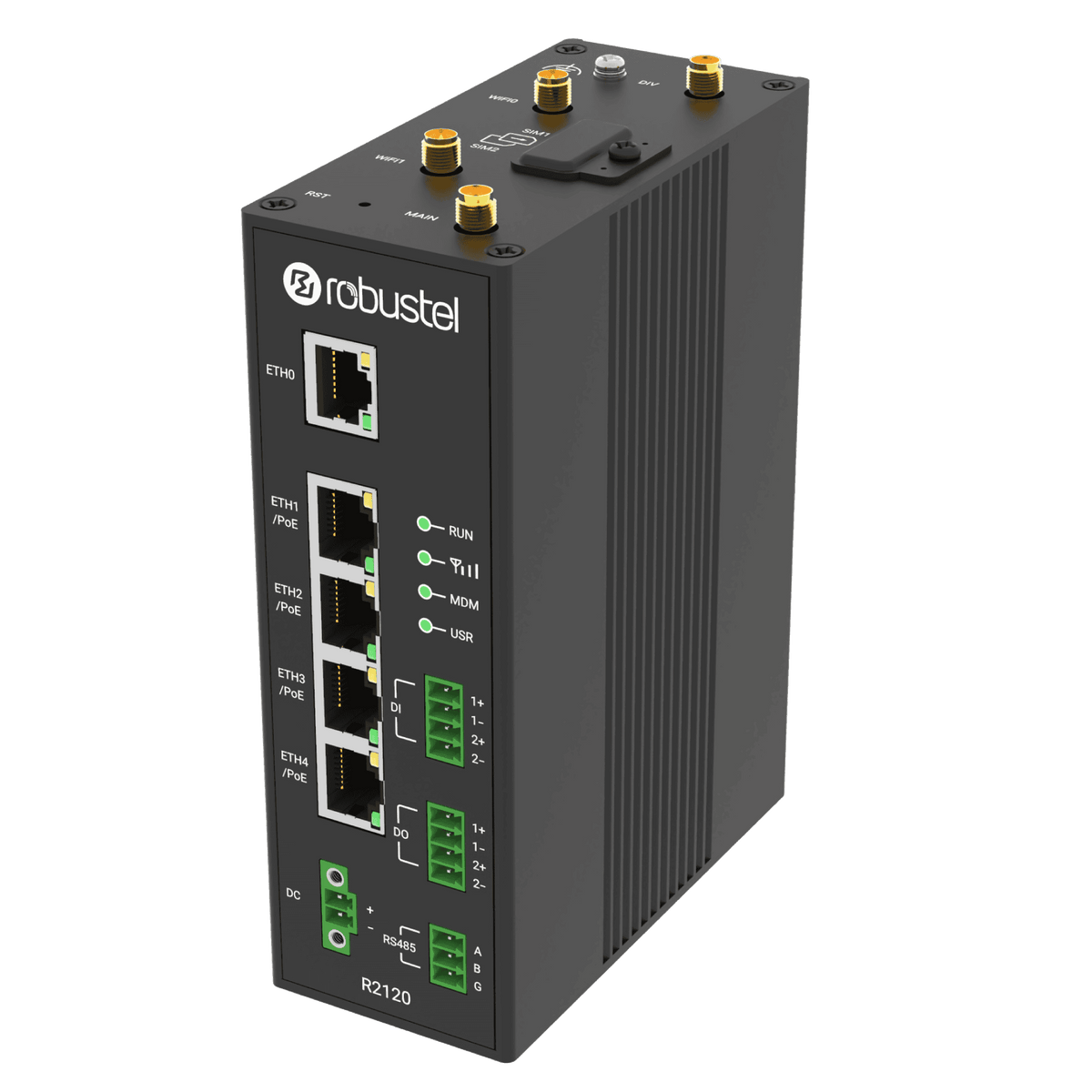

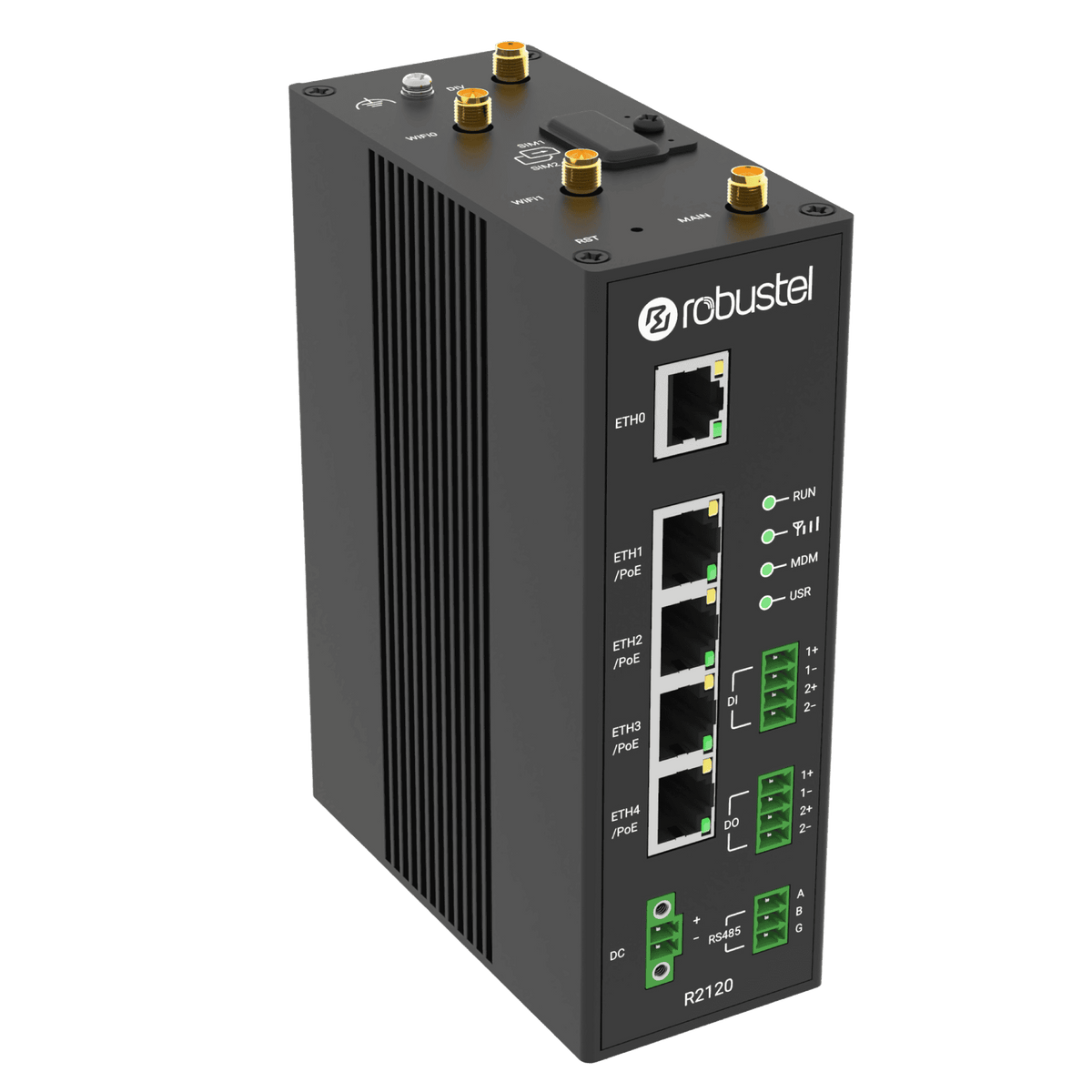

The R2120 is a ruggedised cellular router with integrated Power over Ethernet, intended to power and connect edge devices such as cameras and access points from a single unit. It combines 4G/LTE with a five-port gigabit switch (1 WAN + 4 LAN), four of which are 802.3af/at PoE-PSE sourcing ports supplying up to 30 W each. RS-485 serial, two digital inputs and two digital outputs are provided for field I/O.
Key features
- 4 x IEEE 802.3af/at PoE-PSE ports supplying up to 30 W per port

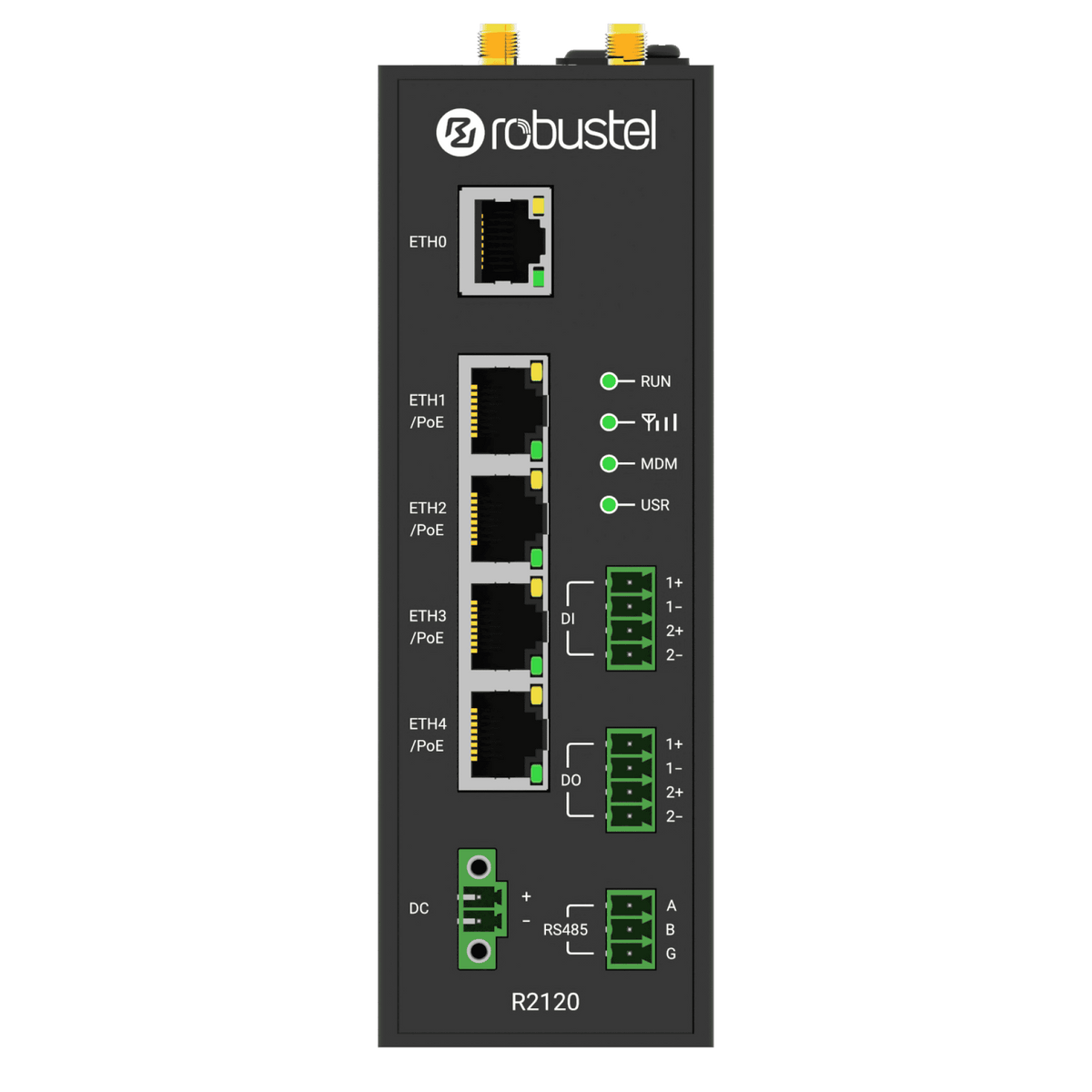

- 5 x 10/100/1000 Mbps Ethernet (1 WAN + 4 LAN) with 1 kV magnetic isolation

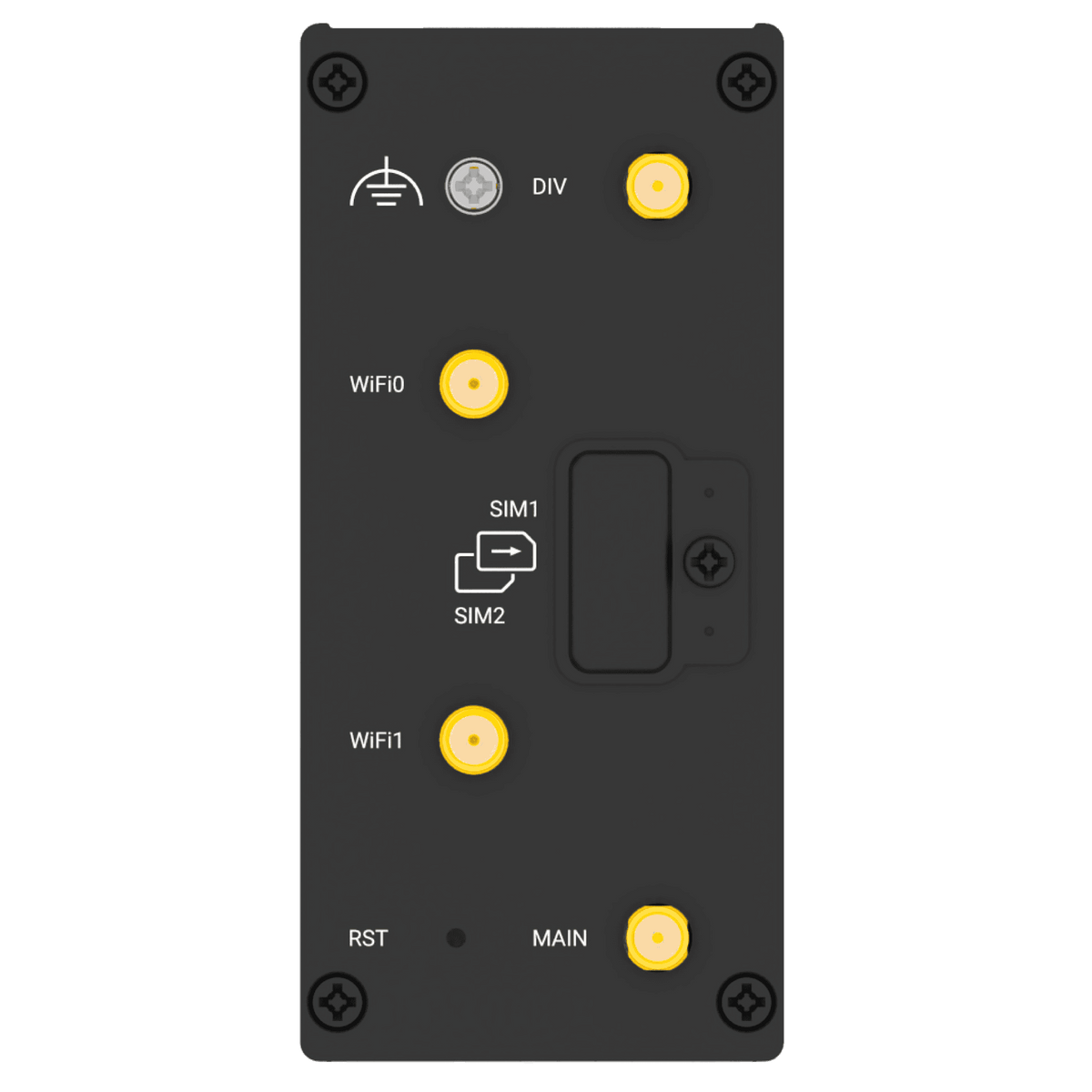

- 4G/LTE with 3G and 2G fallback, dual-SIM failover (2 x Mini SIM, 2FF)
- 1 x RS-485 (300-115200 bps) plus 2 x DI and 2 x DO, 3.75 kV opto-isolated
- Dual-band Wi-Fi 802.11 a/b/g/n/ac, 2x2 MIMO, AP and Client modes
- MT7621 880 MHz, 512 MB RAM, 32 MB flash; RobustOS with full SDK and RCMS
-
Part number
-
Ingress protection
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Power input
-
Radio bands and standards4G/LTE, 3G, 2G, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
-
Connectivity4G/LTE, 3G, 2G, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)
-
Network and serial interfaces5 x 10/100/1000 Ethernet (1 WAN + 4 LAN), 4 x PoE-PSE 802.3af/at up to 30 W per port, 1 x RS-485, 2 x DI, 2 x DO (3.75 kV opto-isolated), SIM slot x2 (Mini SIM 2FF)
-
Ports and connectorsGigabit Ethernet, PoE supply (PSE), RS-485, Digital I/O, Dual SIM
-

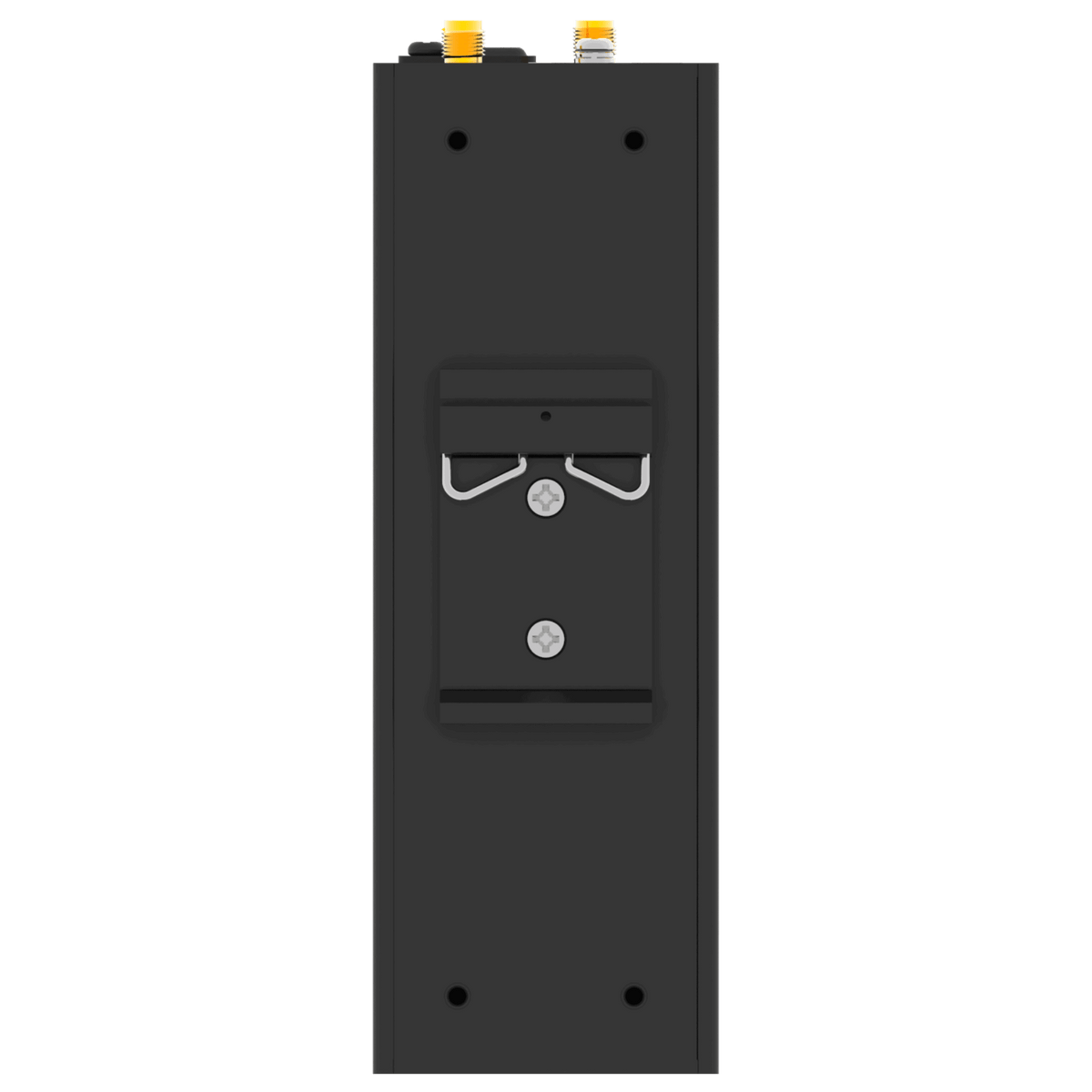

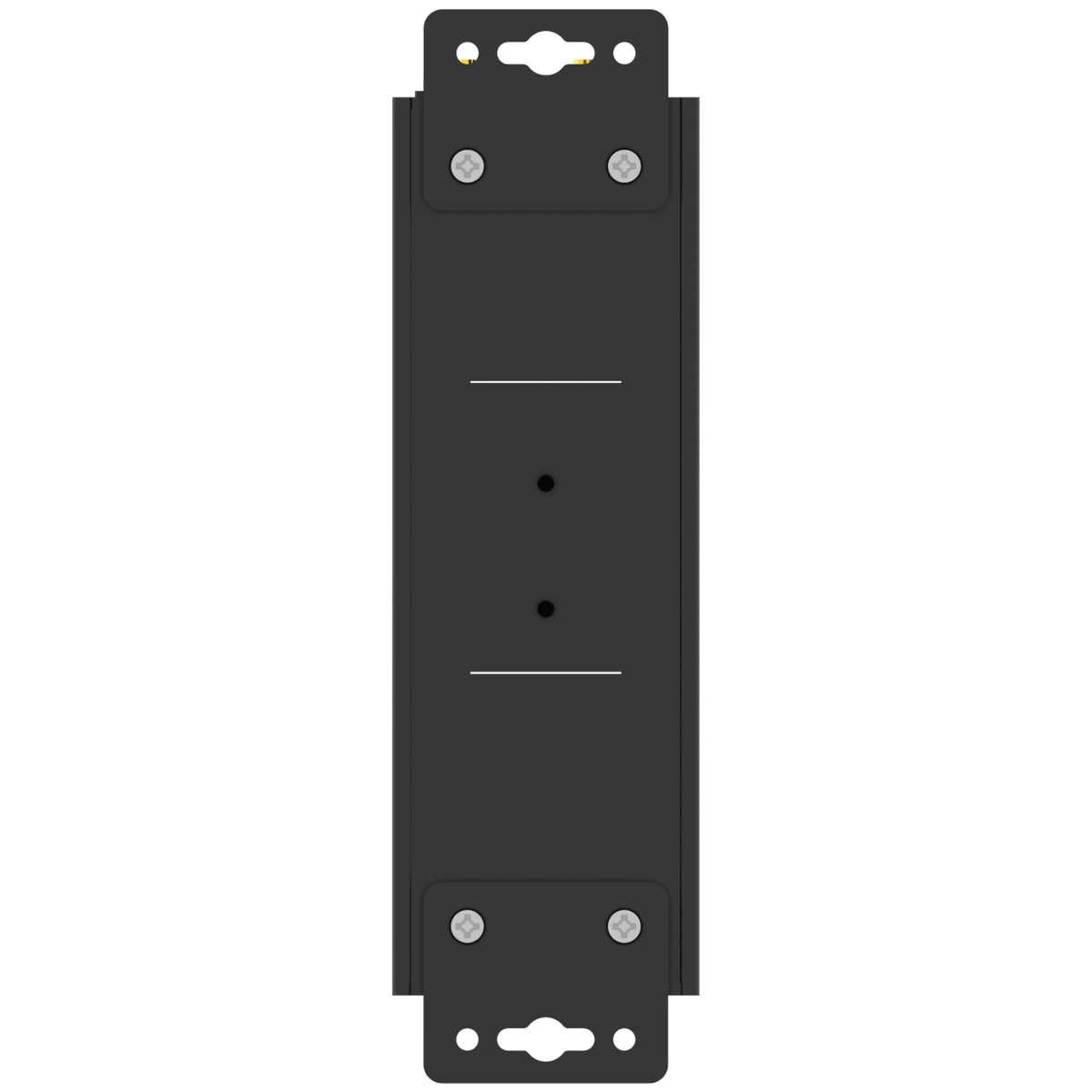

MountingDIN rail, Wall
-
Dimensions (mm)
-
Weight (g)
-
CertificationsRCM
-
Datasheet
-
Firmware portal
Prices are ex-GST. GST and freight are calculated at checkout.
Blank fields are deliberate. We publish the manufacturer's own figures and leave the rest out. If you need a value that isn't here, ask and we will get it from the factory rather than guess it.
Some lines are enquiry-only. Where an order code or an approval needs confirming before we sell it into Australia, the page carries a request-a-quote path instead of an add-to-cart button.
Purchase orders are welcome. Add your PO number to the cart note and it travels with the order.
