Robustel R1520 Global Industrial Dual-SIM 4G/LTE Router
Robustel R1520 Global Industrial Dual-SIM 4G/LTE Router is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.
The R1520 is an industrial dual-SIM 4G router for sites that need more than a couple of wired ports. It provides five 10/100 Ethernet ports configurable as 1 WAN + 4 LAN, RS-232 and RS-485 serial for legacy equipment, isolated digital I/O and a 10-bit analog input. It runs RobustOS with SDK support and RCMS cloud management, and supports IPsec, OpenVPN, GRE, L2TP, PPTP and DMVPN.
Key features

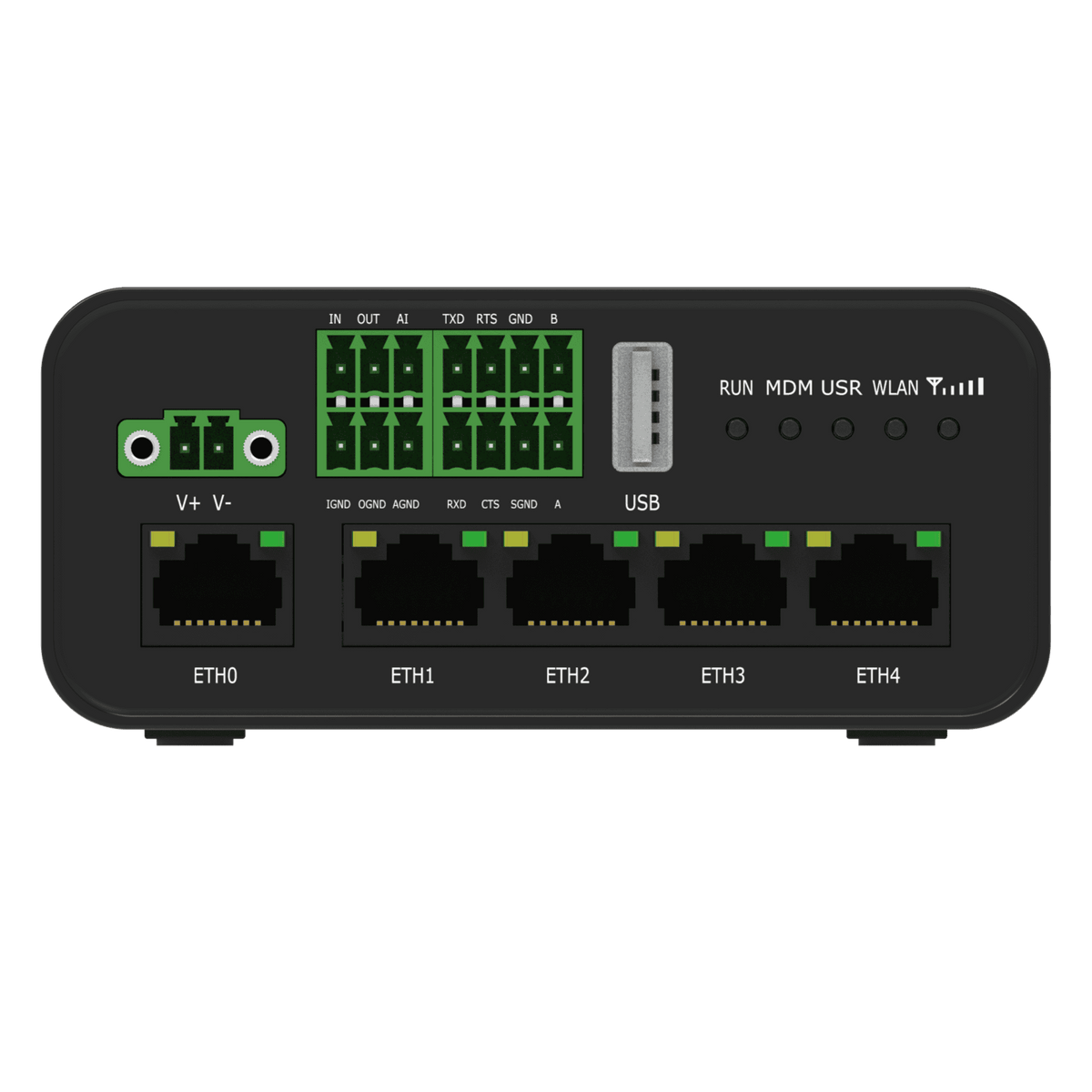

- Five 10/100 Mbps Ethernet ports, configurable as 1 WAN + 4 LAN

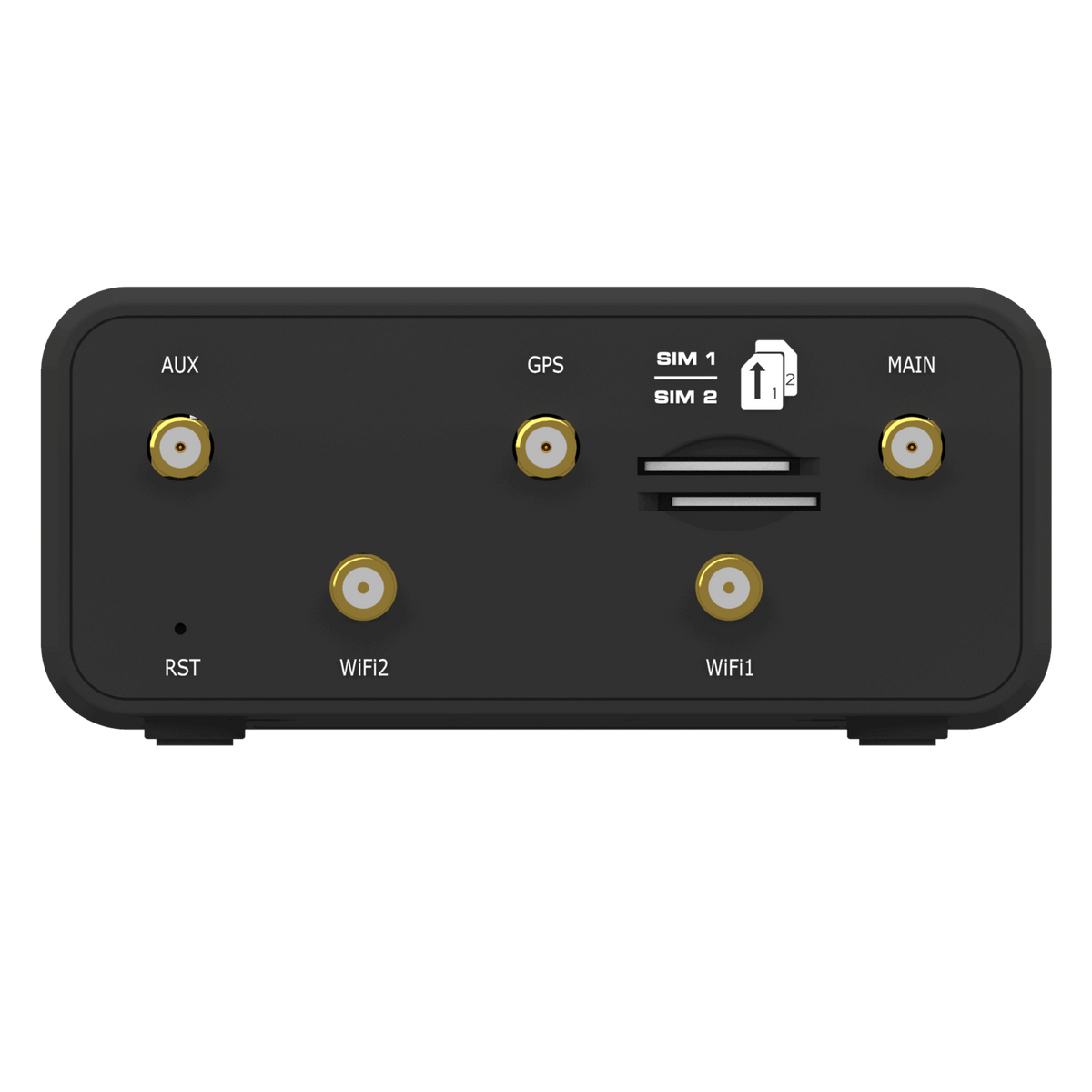

- Dual Mini SIM (2FF) with cellular failover; 4G/LTE with 3G and 2G fallback
- 1 x RS-232 and 1 x RS-485 serial plus 1 x USB 2.0 host
- Digital I/O with 3 kV isolation and a 10-bit analog input (0-24 V DC or 4-20 mA)
- 802.11 b/g/n 2.4 GHz Wi-Fi, AP and Client modes; optional GNSS
- 9-36 V DC with reverse polarity protection, optional PoE-PD (40-57 V DC)
-
Part number
-
Ingress protection
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Power input
-
Radio bands and standards4G/LTE, 3G, 2G, 2.4 GHz Wi-Fi
-
Connectivity4G/LTE, 3G, 2G, Wi-Fi (2.4 GHz)
-
Network and serial interfaces5 x 10/100 Ethernet, RS-232, RS-485, 1 x DI, 1 x DO (3 kV isolated), 1 x analog input, 1 x USB 2.0, SIM slot x2 (Mini SIM 2FF)
-
Ports and connectorsFast Ethernet, RS-232, RS-485, Digital I/O, USB, Dual SIM, PoE powered (PD)
-

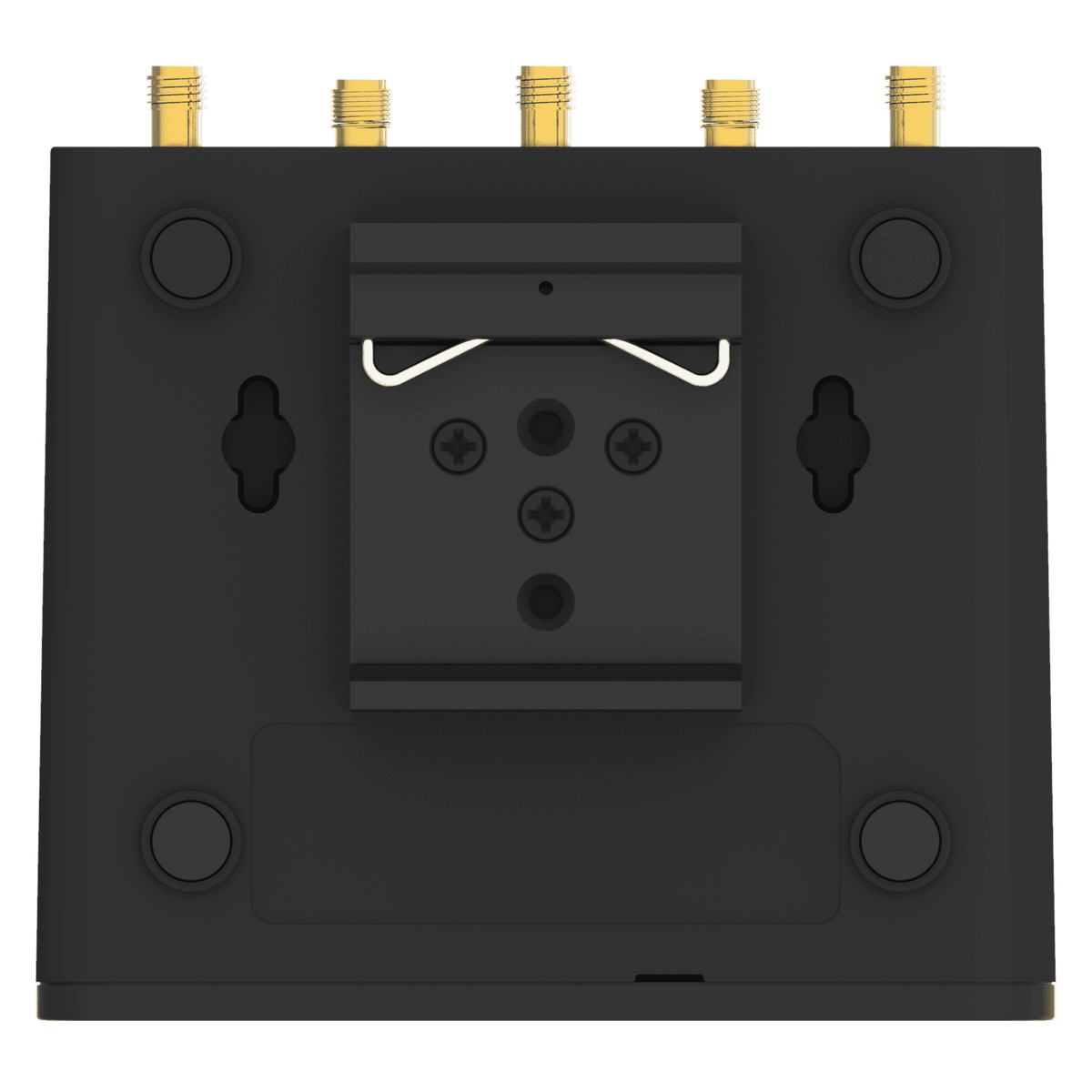

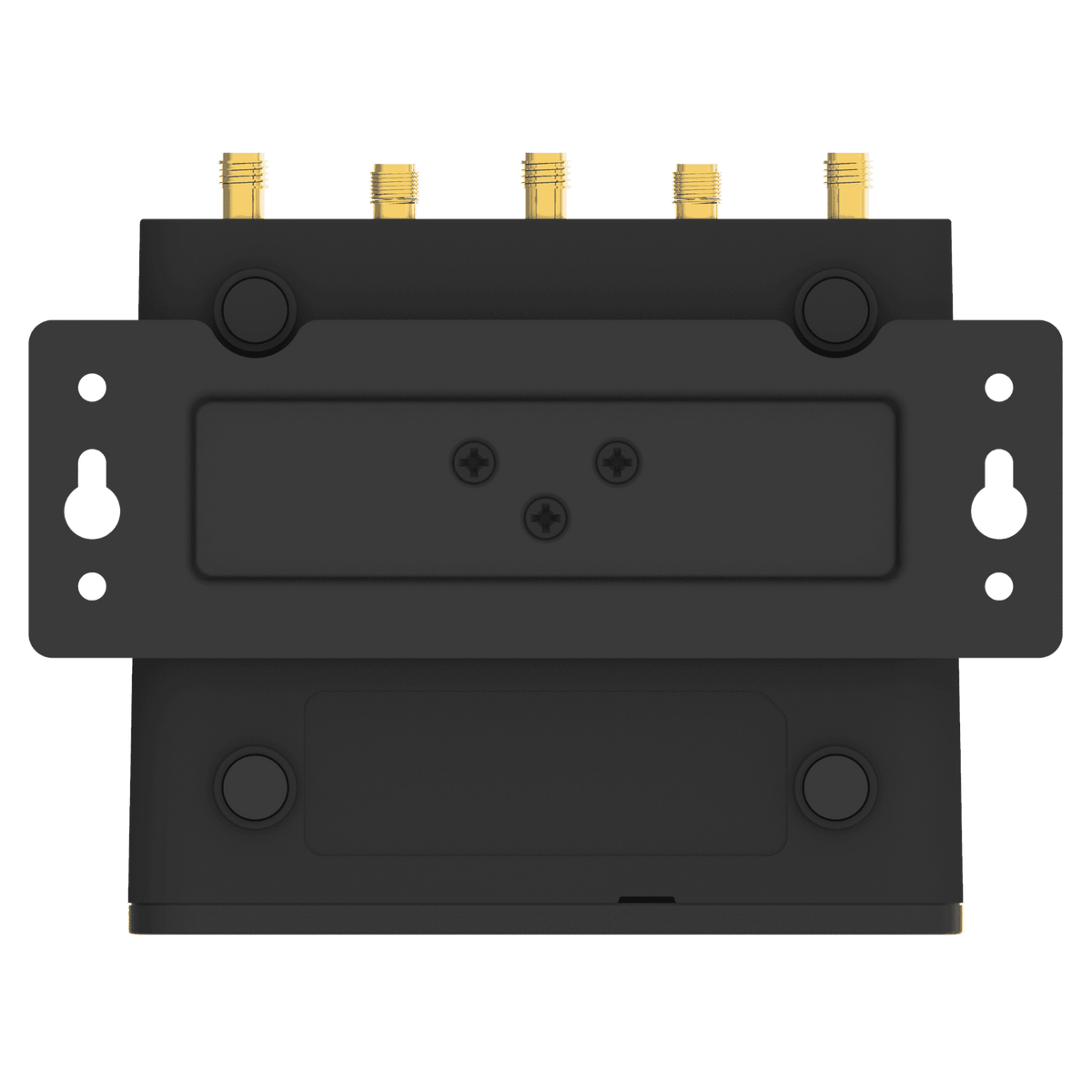

MountingDIN rail, Wall
-
Dimensions (mm)
-
Weight (g)
-
CertificationsCE, UKCA, CB, RCM, E-Mark
-
Datasheet
-
Firmware portal
