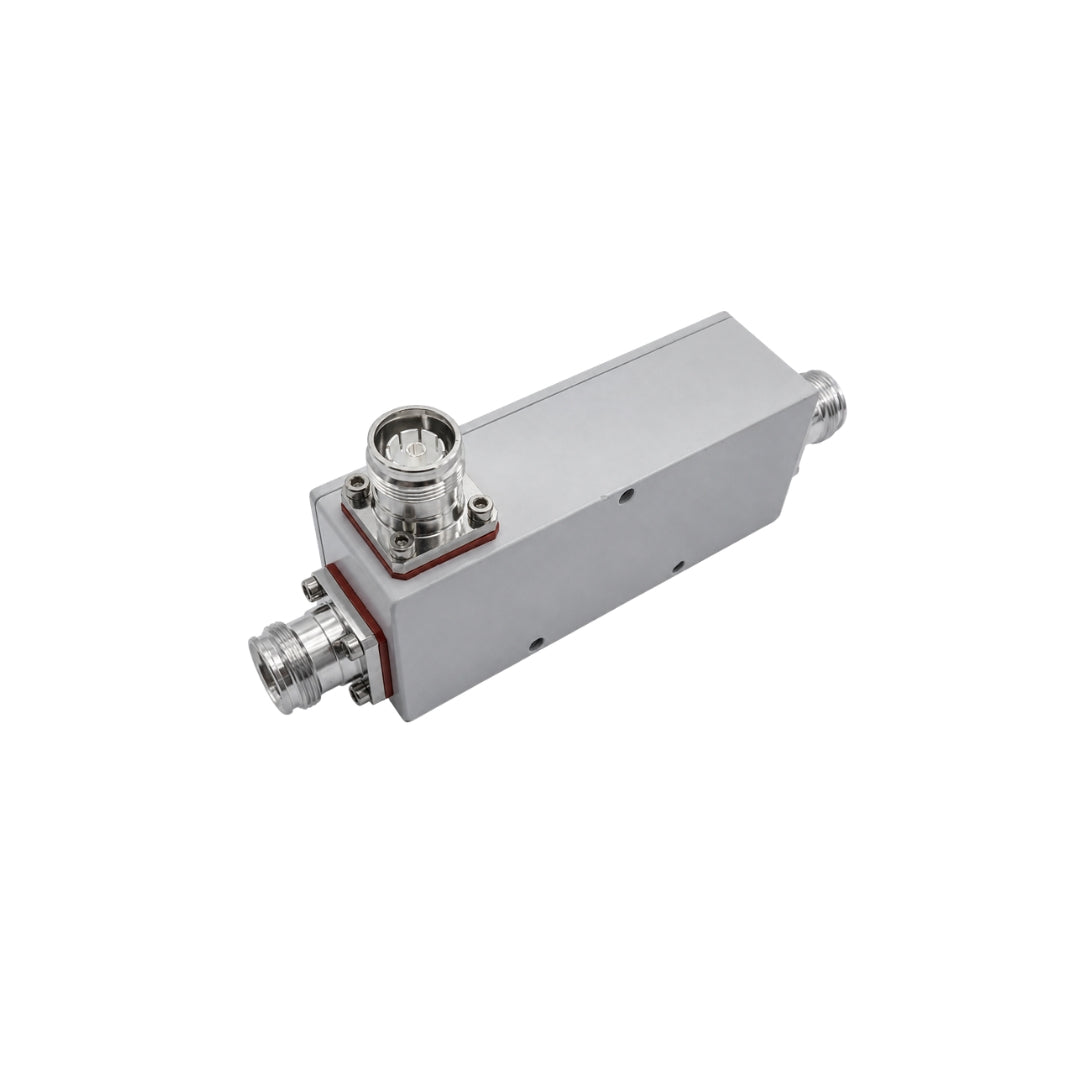

Hefei Maniron HM-MDC-738-05-4F-155 5 dB Directional Coupler
Hefei Maniron HM-MDC-738-05-4F-155 5 dB Directional Coupler is backordered and will ship as soon as it is back in stock.
Manufacturer-published specifications
Every value below is traceable to the manufacturer's own published material for this order code. Where a figure is not published, the row is left out rather than estimated or borrowed from a similar model.
A 5 dB directional coupler for 698–3800 MHz with 4.3-10 female ports, used to tap a monitoring or test signal off a main RF feed without materially disturbing it. Standard part in DAS and in-building coverage builds.
Part number note: Maniron's own catalogue number for this item is MC-738-05-4F-5. The specifications below are taken from that listing. The "-155" suffix in our part number does not match the PIM figure Maniron publishes (≤‑150 dBc), so we have not published a PIM value — ask us and we'll confirm it with the factory.
-
Part number
-
Ingress protection
-
Min operating temp (°C)
-
Max operating temp (°C)
-
Radio bands and standards698-3800 MHz
-
ConnectivityPassive RF (no radio)
-
RF performance50 Ω, Coupling 5 dB, Insertion loss ≤2.2 dB, VSWR ≤1.25, Isolation ≥20 dB, Average power 200 W
-
Network and serial interfaces4.3-10 female
-
Ports and connectors4.3-10
-
Weight (g)
